Which PC Case for an RTX 5090 in 2026? GPU Length, 3.5-Slot Thickness and Airflow: Our Picks

You own (or are eyeing) an RTX 5090 and want to know whether it will fit in your case. The answer depends less on the “gaming” label than on three numbers: the card’s length, its thickness in slots and the heat it dumps into the case.

NVIDIA’s Founders Edition is the exception: 304 mm long, 137 mm tall and 2 slots. Partner models are much bigger. Our reference card, the MSI RTX 5090 32G Gaming Trio OC, measures 359 × 149 × 70 mm and takes up 3.5 slots according to MSI’s spec sheet.

Click to enlarge

A triple-fan partner RTX 5090 (Palit GameRock) — photo PantheraLeo1359531, CC BY 4.0, via Wikimedia Commons.

On the power side, NVIDIA lists 575 W Total Graphics Power and recommends a 1,000 W power supply for the whole system, with a 600 W PCIe Gen 5 cable (or four 8-pin cables through the included adapter). Those 575 W end up as heat inside the case, so airflow matters as much as space. For the PSU itself, see our guide to choosing a PC power supply.

We took the maximum GPU length stated by each manufacturer (Lian Li, MSI, Corsair, be quiet!) and worked out the clearance left with a 359 mm card such as the Gaming Trio OC. Keep at least 20 to 30 mm of headroom if you mount fans or a radiator up front: the manufacturer figure is always measured with an empty case.

Click to enlarge

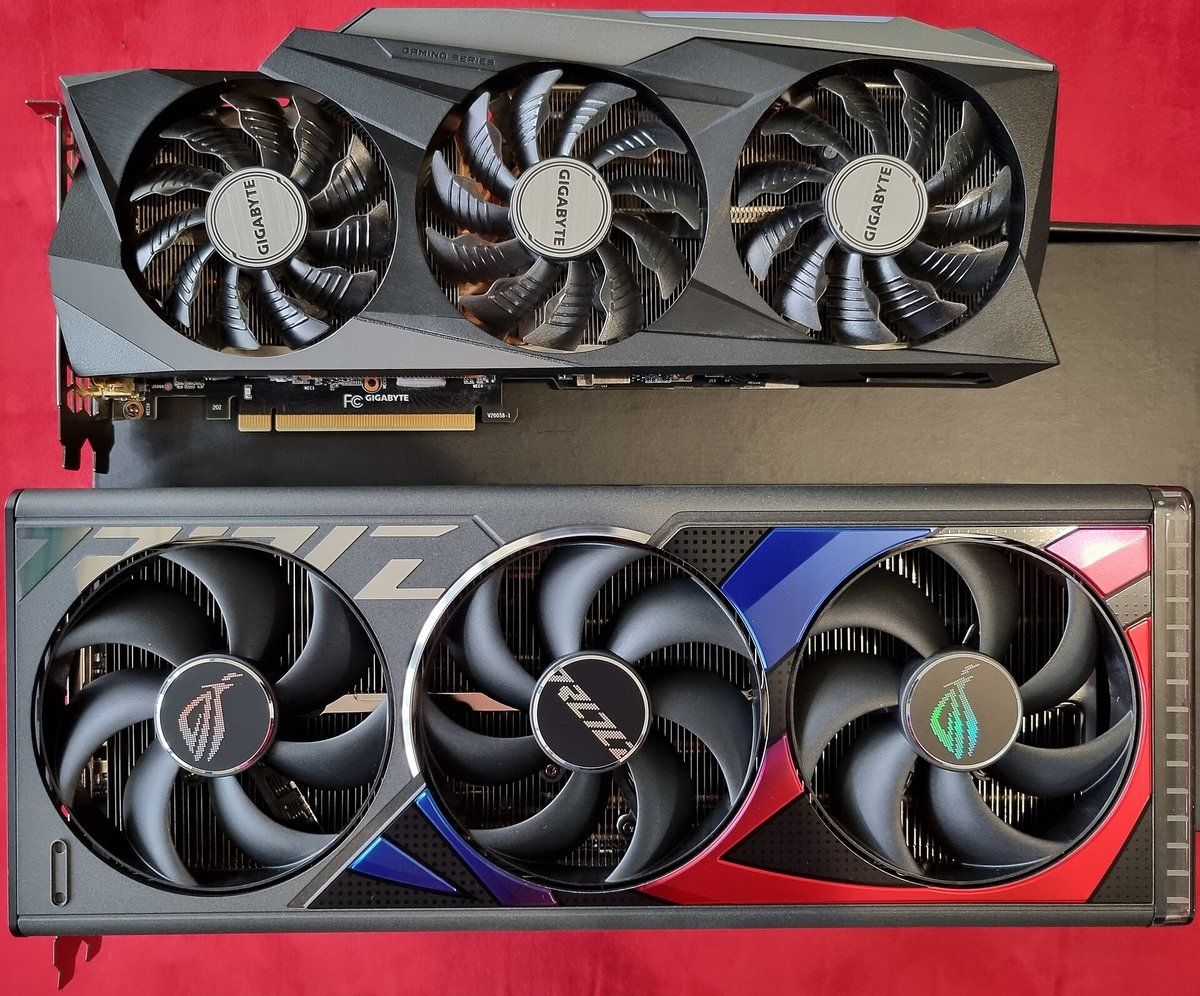

A Gigabyte RTX 3090 next to an ROG Strix RTX 4090: high-end cards have grown a lot — photo Benlisquare, CC BY-SA 4.0, via Wikimedia Commons.

Sources: Lian Li, MSI, Corsair and be quiet! spec sheets, MSI’s RTX 5090 Gaming Trio OC page and NVIDIA’s RTX 5090 page, checked on Oct 9, 2026. MSI lists 380 mm in the Pano 100R PZ spec sheet but 400 mm on another version of its page: we use the more cautious figure. Prices: on Oct 11, 2026, dollar prices are the best US offers in the DropReference catalog (never converted from euros); the Lian Li Vector V100R, Lian Li A3-mATX and MSI MAG Pano 100R PZ had no current US offer.

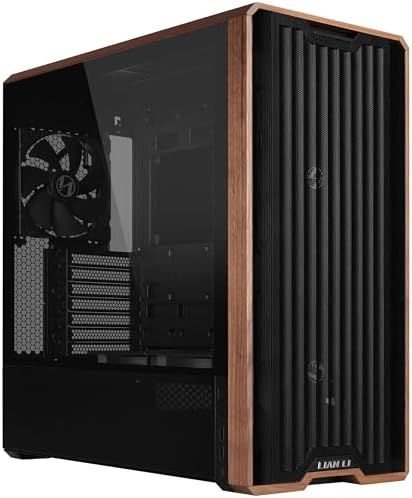

With the Founders Edition (304 mm, 2 slots), all seven cases in the table work, even the Corsair AIR 5400 and its 360 mm, with more than 50 mm to spare. With a 3.5-slot partner card like the Gaming Trio OC, the list gets shorter: the AIR 5400 becomes borderline, the Pano 100R PZ and the Lancool 217 leave 21 mm, and only the V100R, the A3-mATX, the O11 Vision Compact and the Light Base 500 keep more than 40 mm for fans or a radiator.

Also think about vertical mounting: in the Light Base 500, be quiet! limits a vertical card to 4 slots, and the A3-mATX’s optional vertical kit only takes 3 slots. A partner RTX 5090 therefore goes in horizontally in those two cases.

Good news: you don’t need a premium case to house a 36 cm card. The two most affordable cases in this roundup are also the ones with the most GPU length. For more budget options, check our roundup of affordable gaming cases.

An RTX 5090 dumps most of its heat inside the case. Models that blow fresh air straight at the card (side or bottom fans) cope best. The next three do it out of the box.

Want to show off your card? Dual-chamber cases clear the view, but check their GPU length closely. The O11 Vision Compact keeps 408 mm, while the Corsair AIR 5400 stops at 360 mm: 1 mm of clearance with the Gaming Trio OC.

Length isn’t everything. On an RTX 5090, the 16-pin 12V-2x6 connector sits on top of the card: you need room between the card and the side glass so the cable isn’t bent sharply right out of the plug.

Click to enlarge

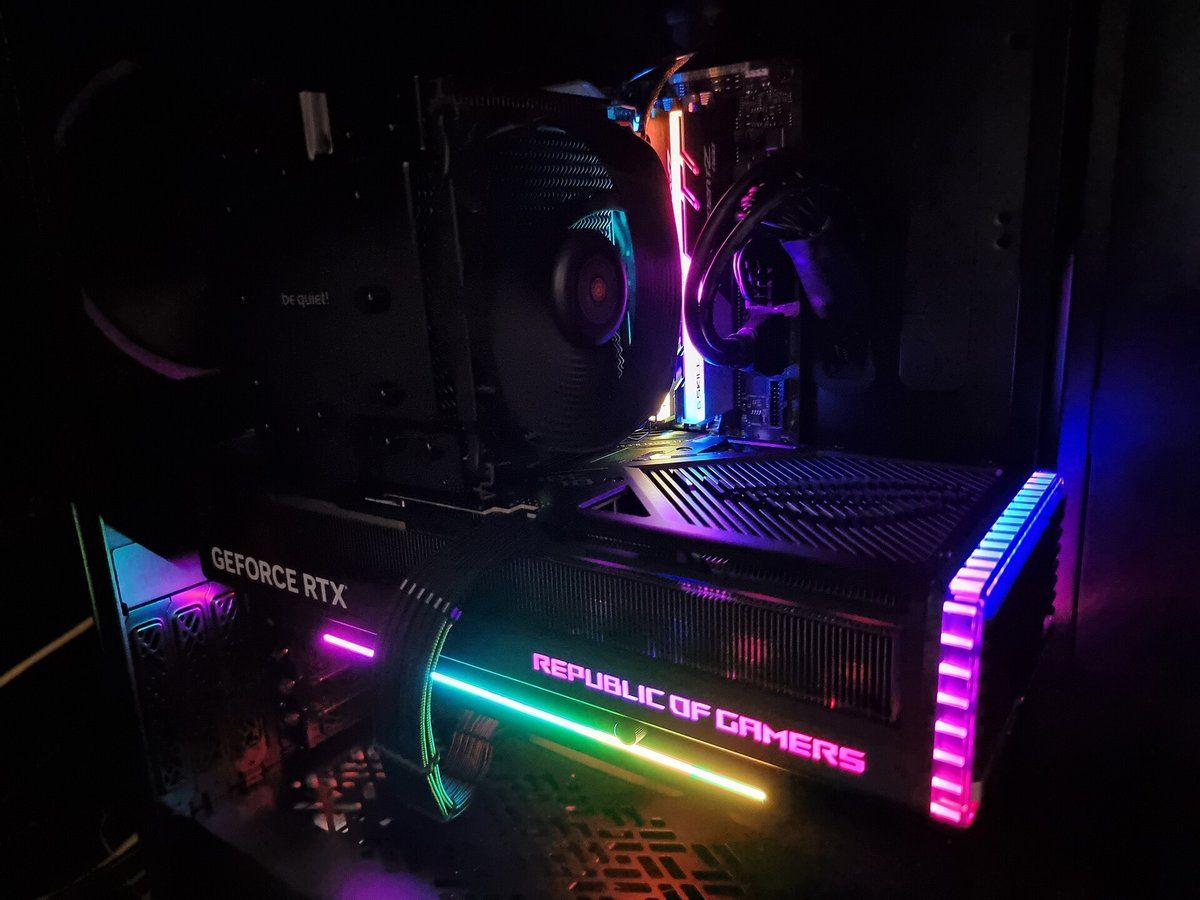

An RTX 4090 Strix with a third-party 12VHPWR cable whose bend has plenty of room — photo Benlisquare, CC BY-SA 4.0, via Wikimedia Commons.

• Thickness: a 3.5-slot card (70 mm for the Gaming Trio OC) covers the lower PCIe slots and can clash with a fan mounted on the case floor.
• Sag: the V100R, A3-mATX, Lancool 217 and O11 Vision Compact include an anti-sag bracket. Elsewhere, use the one bundled with the card.
• Power supply: NVIDIA recommends 1,000 W. The Light Base 500, Pano 100R PZ and AIR 5400 limit the PSU to 200 mm in length.
• Airflow: favor fresh-air intake below or beside the card, and exhaust at the top or rear.

• Get the exact length of your card from the manufacturer’s spec sheet (304 mm for the Founders Edition, 359 mm for the Gaming Trio OC).
• Subtract the thickness of any front fans or radiator from the case’s stated GPU length.
• Check the card’s thickness in millimeters, not just in slots.
• Leave room for the 12V-2x6 cable between the card and the side panel.
• Check the maximum PSU length for a 1,000 W unit.
• Pick a case with direct air intake toward the graphics card.

What maximum graphics card length do I need for an RTX 5090?

For the Founders Edition (304 mm), 330 mm is enough. For a partner card, aim for 380 mm or more: the Gaming Trio OC already measures 359 mm. Add the thickness of a fan (25 mm) if you mount one up front.

Does an RTX 5090 fit in a Micro-ATX case?

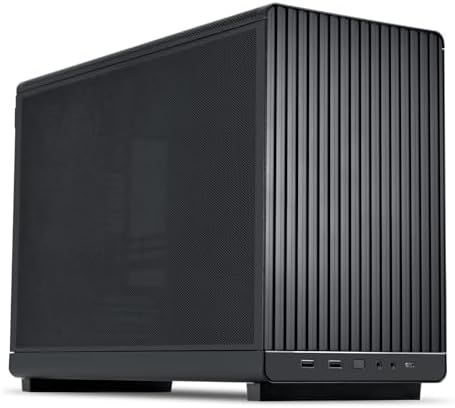

Yes, if the case is designed for it: the Lian Li A3-mATX takes 415 mm and 4 slots, but no 25 mm fan under a 70 mm-thick card.

What about Mini-ITX?

The Founders Edition (2 slots, 304 mm) is the easiest to fit. See our Mini-ITX case comparison.

Is the Corsair AIR 5400 compatible with an RTX 5090?

Only with a card of 360 mm or less, according to Corsair. Great for the Founders Edition, best avoided with most partner models.

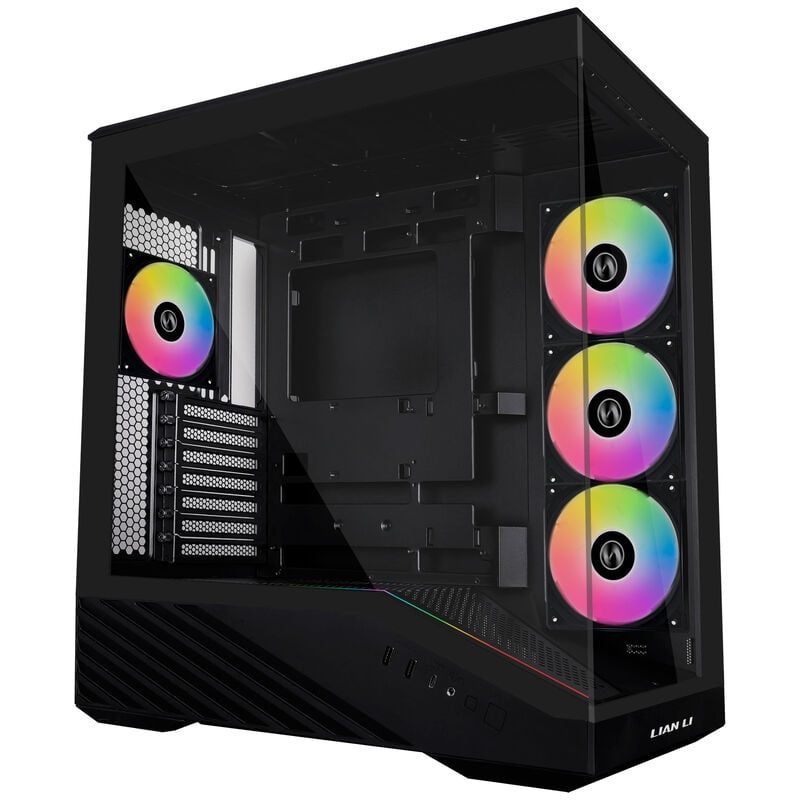

Tight budget: the Lian Li V100R (420 mm). Best airflow for the money: the be quiet! Light Base 500 (400 mm). Showcase build: the Lian Li O11 Vision Compact (408 mm). To compare with other form factors, read our complete gaming PC case guide.

US availability checked on DropReference on Oct 11, 2026: four of these seven cases have a current US offer (see the table above); the Lian Li Vector V100R, Lian Li A3-mATX and MSI MAG Pano 100R PZ have none.
